Analysis

Once you have built a list of surfaces or hypersurfaces, you can study them using the various tabs in the normal (hyper)surface list viewer.

Above all of these tabs is a header displaying the total number of (hyper)surfaces, the original enumeration parameters, and a link to the underlying triangulation. The enumeration parameters include:

There are some unusual comments that you might see in this header if you are using old data files and/or customised software:

Legacy surfaces

You might see this instead of vertex or fundamental surfaces. This means that the list of surfaces was created using Regina 4.93 or earlier (which did not save information on whether the surfaces you enumerated were vertex or fundamental).

Custom (hyper)surfaces

You might see this instead of vertex or fundamental (hyper)surfaces. This means that the list was created using some specialised or user-designed algorithm, and Regina cannot give you any more specific information about which surfaces or hypersurfaces these are.

Legacy almost normal coordinates

This indicates that the list was created using Regina 4.5.1 or earlier, and that surfaces with more than one octagon were deleted. See the discussion on legacy coordinates for details.

As of version 4.94, Regina also remembers details of the specific enumeration algorithm that was used. This information is not shown in the user interface, but can be extracted using Python scripting.

Viewing the Triangulation

As of Regina 7.0, normal surfaces and hypersurfaces are no longer linked to their source triangulations in the packet tree. You can move a surface list and/or its triangulation around independently in the tree, or you can modify or even delete the original triangulation. All of these operations are now allowed and safe.

Whatever happens, it is always possible to come back and view the original triangulation from which a surface or hypersurface list was created. You do this by following the link in the header:

If the original triangulation still exists in an unmodified form in your packet tree, this link will open it directly. If the original has been modified or deleted, then this link will be marked as private copy, which indicates that the (hyper)surface list took its own copy of the original triangulation for safekeeping. These private copies are saved in Regina data files, so you do not need to worry about losing the original triangulation if you close Regina and reopen it later.

If you try to open this private copy, Regina will instead offer to insert a fresh copy of the original triangulation in your packet tree, for you to view and/or edit as you like.

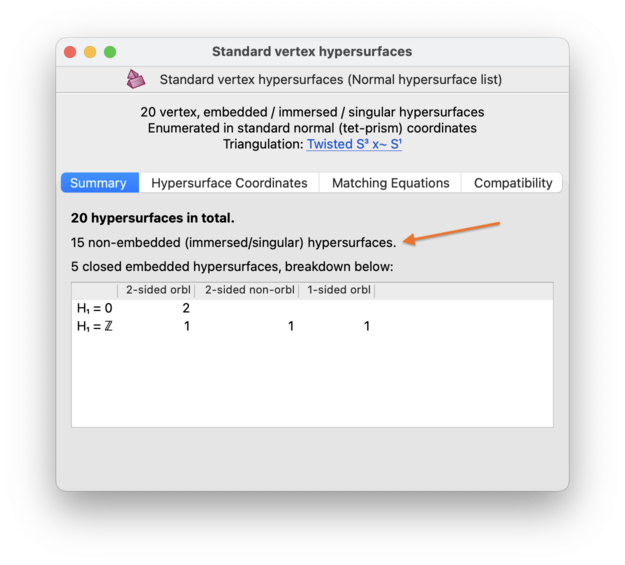

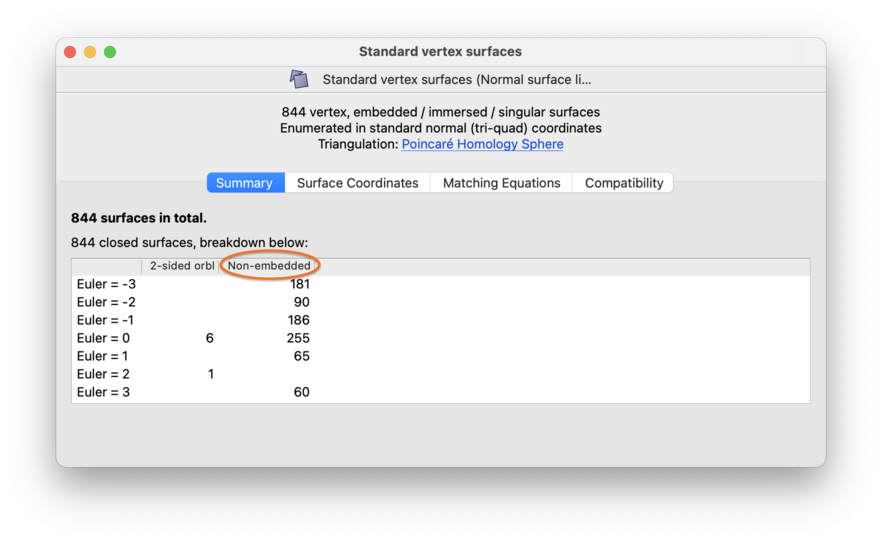

Summary of (Hyper)surfaces

The Summary tab breaks down the total number of (hyper)surfaces into sub-counts for different types of (hyper)surfaces, as illustrated below. At a broad level, the total is divided into:

  • closed (hyper)surfaces, which do not meet the boundary of the triangulation and contain only finitely many normal pieces;

  • bounded (hyper)surfaces, which do meet the boundary of the triangulation and again only have finitely many normal pieces;

  • spun-normal surfaces in 3-manifold triangulations, which have infinitely many triangles;

  • non-compact hypersurfaces in 4-manifold triangulations, which have infinitely many tetrahedra.

For each category that contains one or more (hyper)surfaces, a table is shown to break this down further according to various simple properties. These include orientability, 1-or-2-sidedness, Euler characteristic (within 3-manifolds only), and homology (within 4-manifolds only).

Note

Spun-normal surfaces and non-compact hypersurfaces will only be explicitly mentioned in the Summary tab if your enumeration coordinate system supports them. In particular, for normal hypersurfaces in 4-manifold triangulations, non-compact surfaces should never be mentioned at all, unless you have used a specialised hand-coded enumeration algorithm.

Details of Individual (Hyper)surfaces

You can view details of the individual surfaces in the Surface Coordinates or Hypersurface Coordinates tab. This brings up a large table in which each row represents a single normal (or almost normal) surface or hypersurface.

Above the table are some drop-down boxes that let you view the list in different coordinate systems, and—for 3-manifolds only—with different filters applied. These options are discussed further in the notes on coordinate systems and filtering surfaces respectively.

In the first column, (hyper)surfaces are numbered 0,1,2,… in no particular order, so that you can make note of them for later on. You can also assign arbitrary names to (hyper)surfaces by typing directly into the second column; these names will be saved with your data file.

Properties of (hyper)surfaces

The next few columns describe various properties of each (hyper)surface. Some of these columns might be empty or absent in your viewer (for instance, Regina does not compute Euler characteristic for spun-normal surfaces, and it hides several columns if your enumeration allowed for immersed or singular surfaces).

The columns and their meanings are:

Euler (for 3-manifolds only)

Shows the Euler characteristic of the surface.

Homology (for 4-manifolds only)

Shows the first homology group of the hypersurface.

Orient

Contains a tick (✓) if the (hyper)surface is orientable, or the text Non-or. if it is not.

Sides

Shows whether the (hyper)surface is one-sided or two-sided.

Bdry

Indicates what type of boundary the (hyper)surface has. This will be one of:

Indicates a closed, compact (hyper)surface; that is, with no boundary at all and finitely many normal pieces.

Real

Indicates a compact (hyper)surface with boundary; that is, with finitely many normal pieces, some of which meet the boundary of the triangulation.

The word Real (as opposed to a precise number) indicates that Regina does not know the exact number of boundary components. Currently Regina does not count boundary components for normal hypersurfaces in 4-manifolds, or when enumerating immersed/singular normal surfaces in 3-manifolds.

1, 2, 3, …

As with Real, this indicates a compact (hyper)surface with boundary, but moreover it indicates the precise number of boundary components.

Currently Regina will only count boundary components if you enumerate embedded normal surfaces in 3-manifold triangulations, and only for those resulting surfaces that are compact.

Spun (3-manifolds only)

Indicates a spun-normal surface; that is, a non-compact surface with infinitely many triangles. These only appear when the enumeration is done in quadrilateral or quadrilateral-octagon coordinates.

Regina can compute boundary slopes for spun-normal surfaces, but only for quadrilateral coordinates (not quadrilateral-octagon coordinates), only for orientable 3-manifolds, and only for SnapPea triangulation packets (because Regina's native triangulation packets do not provide a meridian and longitude on each cusp).

If you have a native Regina triangulation and you wish to view boundary slopes for spun-normal surfaces, you must first convert it to a SnapPea triangulation, which will install a default (shortest, second shortest) basis on each cusp. After this you can enumerate vertex or fundamental surfaces relative to the new SnapPea triangulation, and Regina will show you the boundary slopes. If you already began with a SnapPea triangulation (for instance, one that you imported from SnapPy), then Regina will work with whatever basis SnapPea was already using for that triangulation.

Each boundary slope is presented as a pair (pq) for each cusp, indicating that the boundary curve passes p times around the meridian and q times around the longitude. If there are multiple cusps, these pairs will be ordered by cusp number.

Non-compact (4-manifolds only)

Indicates a non-compact hypersurface with infinitely many tetrahedra. As noted earlier, you should never see this unless you have used your own specialised enumeration algorithms—this is because Regina currently only enumerates hypersurfaces in standard coordinates, which produces compact hypersurfaces only.

Link

Indicates if a (hyper)surface is the link of some face of the underlying triangulation. In general, the link of a face is created by forming the boundary b of a small regular neighbourhood of the face. We call this link thin if the (hyper)surface b is already normal; otherwise we refer to the normalised link as the result of applying the standard normalisation process to b (which could change the topology, and in some extreme scenarios could even reduce b to the empty surface).

If this (hyper)surface is the link of a face then the relevant faces will be listed here, using the vertex, edge, triangle and/or tetrahedron numbers that appear in the first column of the skeletal face viewers. Note that it is possible for a (hyper)surface to be the link of several faces at the same time, possibly even of different dimensions, in which case they will all be reported here.

Any thin links will be reported first (indicated by Thin:), followed by any normalised links (indicated by Normal:). Vertices, edges, triangles and tetrahedra will be indicated by the abbreviations vtx, edge, tri and tet. In 3-manifold triangulations, Regina will only detect vertex, edge and triangle links; in 4-manifold triangulations, Regina will detect vertex, edge, triangle and tetrahedron links.

Some examples of things you might see in this column:

Thin: vtx 3

Indicates a (hyper)surface that is the thin link of vertex 3 (note that vertex links are always thin).

Thin: tri 4; Normal: edge 1

Indicates a (hyper)surface that is simultaneously the thin link of triangle 4, and also the normalised link of edge 1.

Thin: edge 0,2

Indicates a (hyper)surface that is simultaneously the thin link of edges 0 and 2 (note that a surface or hypersurface can never be the thin link of more than two faces).

A one-sided (hyper)surface whose double is the link of a face will also be reported as such in this table (though this can never happen with vertex links).

If the (hyper)surface is not the link of a face as described above, then this cell will be left empty.

Type (3-manifolds only)

Indicates if this is one of a few special types of normal surface that Regina identifies. Possible values are:

Central

There is at most one normal or almost normal disc per tetrahedron (which may be a triangle, quadrilateral or octagon). The cell will also list the total number of normal discs (i.e., the total number of tetrahedra that this surface meets).

Splitting

There is precisely one quadrilateral per tetrahedron and no other normal (or almost normal) discs. Although splitting surfaces are also central, only the word Splitting will be displayed.

If the surface is not one of these types, this cell will be left empty.

Octagon (3-manifolds only)

Indicates which coordinate position contains the octagonal discs (if any), and how many octagonal discs there are. (Recall that the enumeration procedure insists that at most one coordinate position can have octagonal discs, but allows any number of octagons of that type.)

This column only appears if you enumerated using an almost normal coordinate system.

If this cell is empty, it means the surface does not contain any octagons at all (i.e., you have a normal surface, not an almost normal surface). Otherwise it will state which coordinate position contains the octagons and how many octagons there are (for example, K2: 03/12 (3 octs)).

Coordinates and Coordinate Systems

The remaining columns give the precise normal coordinates of the surface or hypersurface.

You can view (hyper)surfaces in several different coordinate systems, not just the system you used for enumeration. To change the coordinate system, simply select a new system from the drop-down box above the table.

This will not re-enumerate surfaces in the new coordinate system; it will simply re-display the surfaces you already have. For example, if you enumerated normal surfaces in quadrilateral coordinates then your list will not contain any vertex links, and these will not suddenly appear when you view in standard coorinates. If your list contains spun-normal surfaces and you view them in standard coordinates, they will not disappear (instead you will see triangular coordinates of ∞).

For normal surfaces in 3-manifold triangulations, the available coordinate systems are as follows. Some options might not be available for your surface list (for instance, if you enumerated in standard normal coordinates then the almost normal systems will not appear).

Standard normal (tri-quad)

This is the standard 7n-dimensional coordinate system that typically appears in papers and textbooks (where n is the number of tetrahedra). Each tetrahedron contributes four triangle and three quadrilateral coordinates.

Triangle coordinates are labelled 0:0, 0:1, 0:2, 0:3, 1:0, etc., where coordinate t:v counts the number of triangles in tetrahedron t that separate vertex v of that tetrahedron from the others. Here 0 ≤ t < n and v ∊ {0,1,2,3}.

Quadrilateral coordinates are labelled 0:01/23, 0:02/13, 0:03/12, 1:01/23, etc., where coordinate t:ab/cd counts the number of quadrilaterals in tetrahedron t that separate vertices a and b of that tetrahedron from vertices c and d. Here 0 ≤ t < n, and a,b,c,d are some permutation of 0,1,2,3.

Quad normal

These are the 3n-dimensional quadrilateral coordinates, obtained from standard normal (tri-quad) coordinates by ignoring all triangles and considering only the quadrilaterals. See [Tol98] or [Bur09a] for details.

Standard almost normal (tri-quad-oct)

This is a 10n-dimensional system for almost normal surfaces, obtained from standard normal (tri-quad) coordinates by adding three octagon coordinates per tetrahedron.

Octagon coordinates are again labelled 0:01/23, 0:02/13, 0:03/12, 1:01/23, etc., where coordinate t:ab/cd counts the number of octagons in tetrahedron t that separate vertices a and b from c and d.

To avoid ambiguity, all triangle, quadrilateral and octagon coordinate labels are prefixed with T, Q and K respectively. The full coordinates are therefore T0:0, T0:1, T0:2, T0:3, Q0:01/23, Q0:02/13, Q0:03/12, K0:01/23, K0:02/13, K0:03/12, T1:0, etc.

Quad-oct almost normal

These are the 6n-dimensional quadrilateral-octagon coordinates, obtained from standard almost normal (tri-quad-oct) coordinates by ignoring all triangles and considering only the quadrilaterals and octagons. See [Bur10b] for details.

Legacy almost normal (pruned tri-quad-oct)

Legacy coordinates are to support data files created in Regina 4.5.1 or earlier. These are like standard almost normal (tri-quad-oct) coordinates, except that surfaces with more than one octagon are deleted entirely.

If you created your surfaces in Regina 4.5.1 or earlier, there is no way to recover those surfaces with multiple octagons—they would have been deleted when you originally enumerated them. Instead you will need to enumerate them again. Your list will always be displayed with the label legacy almost normal coordinates to remind you of this.

From Regina 4.6 onwards, the enumeration process now keeps almost surfaces with multiple octagons (though they must be in the same coordinate position). This is important if you wish to generate new almost normal surfaces by taking convex combinations of old surfaces. If you are only interested in surfaces with one octagon, the Octagon column makes them easy to spot.

Edge weight

This system has one coordinate for each edge of the triangulation. The coordinates are labelled 0, 1, 2, etc., where coordinate e counts the number of times the surface crosses edge number e.

Edge numbers and the tetrahedron edges to which they correspond can be found in the edge viewer, under the triangulation's Skeleton tab.

Edge weight coordinates are offered for viewing only. You cannot enumerate surfaces in edge weight coordinates.

Triangle arc

This system has three coordinates for each triangle (2-face) of the triangulation. The coordinates are labelled 0:0, 0:1, 0:2, 1:0, etc., where coordinate t:v represents the number of times the surface slices through triangle t of the triangulation in an arc that truncates vertex v of that triangle. Here v ∊ {0,1,2}.

Triangle numbers and the tetrahedron faces to which they correspond can be found in the triangle viewer, under the triangulation's Skeleton tab. The three vertices 0,1,2 of each triangle correspond to the ordering of tetrahedron vertices that you see in the rightmost column of the triangle viewer.

Triangle arc coordinates are likewise offered for viewing only. You cannot enumerate surfaces in triangle arc coordinates.

For normal hypersurfaces in 4-manifold triangulations, the available coordinate systems are:

Standard normal (tet-prism)

This is the 15n-dimensional coordinate system that counts all tetrahedra and prisms of all types (where n is the number of pentachora in the underlying triangulation). Each pentachoron contributes five triangle and ten prism coordinates.

Tetrahedron coordinates are labelled 0:0, 0:1, 0:2, 0:3, 0:4, 1:0, etc., where coordinate p:v counts the number of tetrahedra in pentachoron p that truncate vertex v of that pentachoron. Here 0 ≤ p < n and v ∊ {0,1,2,3,4}.

Prism coordinates are labelled 0:01, 0:02, 0:03, 0:04, 0:12, …, 0:34, 1:01, etc., where coordinate p:ab counts the number of prisms in pentachoron t that truncate the edge joining vertices a and b of that pentachoron. Here 0 ≤ p < n, and a,b ∊ {0,1,2,3,4} with a < b.

Prism normal

These are the 10n-dimensional prism coordinates, obtained from standard normal (tet-prism) coordinates by ignoring all tetrahedra and considering only the prisms.

Edge weight

This system has one coordinate for each edge of the triangulation. The coordinates are labelled 0, 1, 2, etc., where coordinate e counts the number of times the hypersurface crosses edge number e.

Edge numbers and the pentachoron edges to which they correspond can be found in the edge viewer, under the triangulation's Skeleton tab.

Edge weight coordinates are offered for viewing only. You cannot enumerate hypersurfaces in edge weight coordinates.

Tip

If you grab and resize one of the coordinate columns, all of the coordinate columns will be resized at once. This is useful if you wish to fit as many columns on the screen as possible.

Original Matching Equations

The Matching Equations tab shows a table with the individual matching equations that were used when you enumerated this list.

The matching equations will always use the same coordinate system that you used during enumeration. Remember that this coordinate system is always displayed above all of the tabs.

Each row of this table represents an individual matching equation. Each equation is a homogeneous linear equation, and the coefficients for each coordinate position are shown in the individual table cells. See the coordinate viewer for details on how the coordinate columms are labelled.

Tip

Like the coordinate viewer, if you grab and resize one of the columns then all columns will be resized at once. This is useful if you wish to fit as much of the matrix on screen as possible.

Compatibility Between (Hyper)surfaces

The Compatibility tab shows which pairs of (hyper)surfaces are locally and globally compatible with each other. This means:

Locally compatible

Two (hyper)surfaces are locally compatible if they are able to avoid intersection in any given top-dimensional simplex of the triangulation (though not necessarily in all such simplices simultaneously).

For 3-manifolds, this means that two compatible normal surfaces can avoid intersecting in any given tetrahedron of the triangulation. That is, in each tetrahedron, they together use at most one quadrilateral or octagonal disc type.

For 4-manifolds, this means that two compatible normal hypersurfaces can avoid intersecting in any given pentachoron of the triangulation. That is, in each pentachoron, they together do not use two conflicting prism types.

Globally compatible (shown for 3-manifolds only)

Two normal surfaces are globally compatible if they are able to avoid intersection in all tetrahedra of the 3-manifold triangulation simultaneously.

In other words, two surfaces are globally compatible if they can be made disjoint within the underlying triangulation.

The Compatibility tab shows this information visually using coloured matrices. It only displays one matrix at a time (either the local compatibility matrix or, for 3-manifolds only, the global compatibility matrix). You can switch between them using the drop-down box indicated below.

Each matrix has dimensions S × S, where S is the total number of (hyper)surfaces in the list. Rows and columns are both numbered 0,...,S-1. The cell at position (x,y) is filled if and only if the (hyper)surfaces numbered x and y are compatible. Recall that (hyper)surfaces are numbered in the leftmost column of the coordinate viewer.

For some normal surfaces in 3-manifolds, Regina cannot test global compatibility. These include surfaces that are empty, disconnected, or spun-normal. In such cases the corresponding rows and columns will be hashed out, as illustrated below.

If you have too many surfaces or hypersurfaces in your list, Regina will not generate the compatibility matrices automatically. You can still compute them by pressing the Calculate button (indicated below).

Crushing and Cutting

Within a 3-manifold triangulation, you can cut along a normal surface, or crush it using the techniques of Jaco and Rubinstein [JR03]. See the chapter on triangulations for details.

Triangulating Hypersurfaces

Within a 4-manifold triangulation, if you wish to study a normal hypersurface in more detail, you can triangulate it. This will create a new 3-manifold triangulation describing the topology of the hypersurface, which you can then attack with all of the 3-manifold machinery that Regina offers.

To triangulate a normal hypersurface, select your hypersurface in the list and then choose Normal HypersurfacesTriangulate Hypersurface from the menu.

Regina will create a new 3-manifold triangulation, which will appear beneath the normal hypersurface list in the packet tree.
